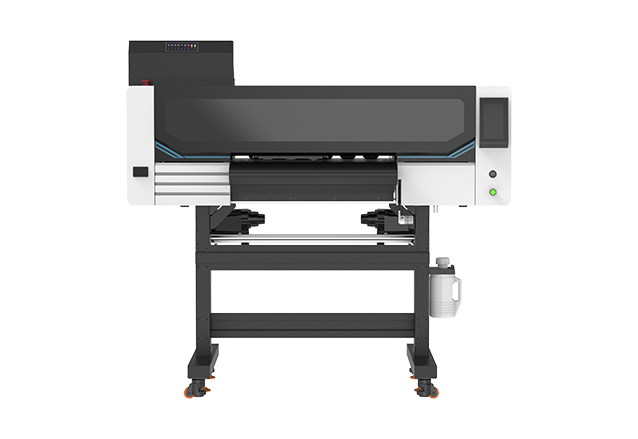

Model: Visual-tex VT-704 60cm DTF Printer
Print Speed: 4 PASS：22m²/h
Printhead Quantity: 4
Printhead: EPSON I3200-A1
Print Size: 600mm
Ink Type: Pigment Ink
Print Color: CYMK+W
| Model | VT-704 | |
| Printhead | EPSON I3200-A1 | |
| Printhead Quantity | 4 | |
| Printing Speed | 4PASS 22m2/h 6PASS 14m2/h 8PASS 10m2/h | |
| Max.Print Width | 600mm | |
| Ink Types | Pigment Ink | |
| Print Color | CMYK+W | |
| Rip Software | Maintop, FlexiPRINT | |
| Transmit Port | Ethernet | |
| Media Type | Pet Film | |
| Image Format | JPG， TIF，PDF, etc. | |
| Working Environmnet | Temp.:18℃~30°C Humidity:35%~65% | |
| Power | 220V, 50HZ/60H, 10A | |
| Machine Size |
Dimension:1710*800*1615mm, Packing:2060*990*940mm |
|
| Package Weight | N.W: 177kg, G.W: 222.7kg | |

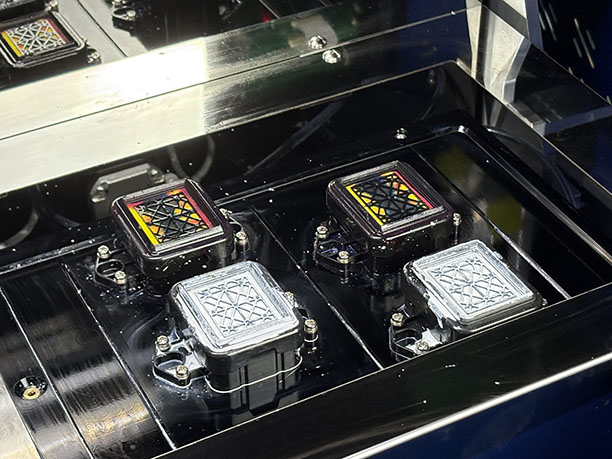

The Visual-tex Model: VT-704 DTF printer is equipped with patented designed maintenance capping station. It's lifted up and down via column driven by motor in the middle, which greatly maintain the balance of capping comparing the traditional gear drive.
The VT-704 DTF printer has anti-collision carriage.
The top grade digital DTF printer equips 1.5 L big ink tank circulatory system and stirs white ink intermittently, the user can adjust it on printing software.

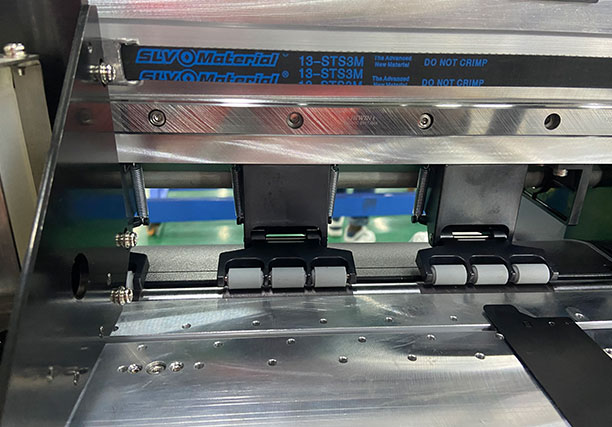

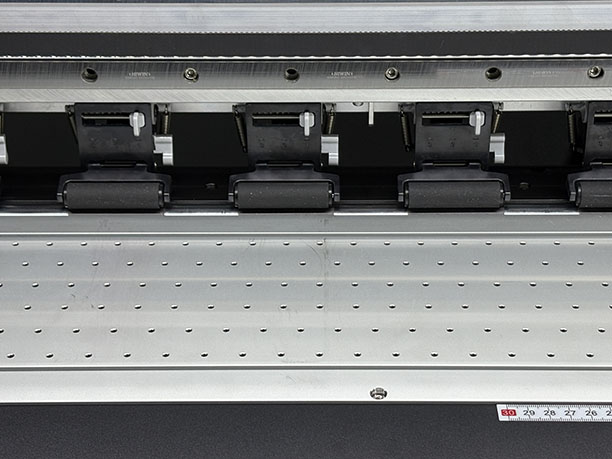

Multi - line pinch rollers make paper feeding more accurate during this VT-702 DTF digital printer working process.
The VT-704 DTF printer uses imported silent linear guide rail.
The Visual-tex DTF 60CM digital printer uses leadshine business integrated servo motors are used on both x&Y direction.
